New eFinder display ready

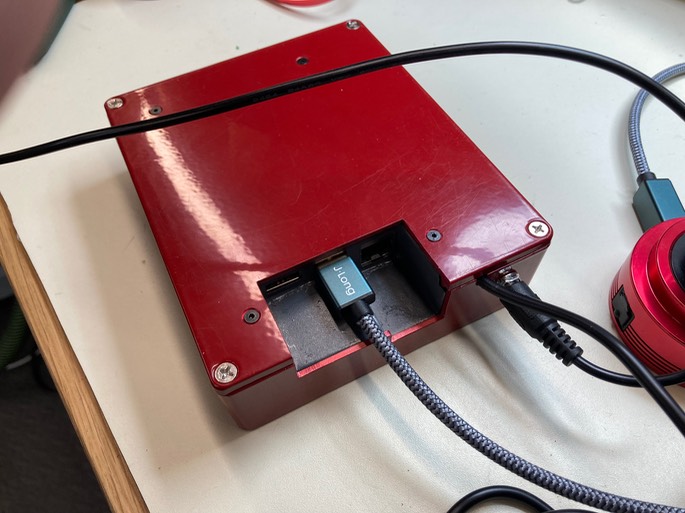

I couldn't find any plastic boxes the right size, so used a rather nice pre-painted aluminium alloy die-cast box. The position of the connectors on the PI are in a rather awkward place, so I had to cut a rebate in the back of the box,and then braze up a cover. Turned out OK, but it makes me think I need to get a 3D printer!
New eFinder display and the new Raspberry Pi5
I’ve always used and recommended AMOLED type displays for astronomy device displays. Not needing a backlight their contrast is very high and their black is absolutely black. Great for dark adaptation and very readable. I use a Samsung tab A2 tablet to run SkySafari while observing as it has an excellent AMOLED display panel.
Recently AMOLED display modules have become available and affordable for the diy market. A 5” display with 900x544 resolution and touch control from Waveshare looked interesting so I decided to build an eFinder with one of these displays ‘built in’.
This coincided with my receipt of one of the first Raspberry Pi5’s to be delivered in the UK. This new model looks very similar to the previous, but is very fast. Initial testing showed it would plate solve x3 quicker (ie about 0.6 seconds). It needs the new Bookworm OS and this I found requires a more structured approach to its set up (virtual environments) plus it had a few bugs!
The AMOLED display really needed a new eFinder GUI display to make the most of its potential. This turned out to be quite a rewrite, but I took the opportunity to make it more user friendly and slicker.

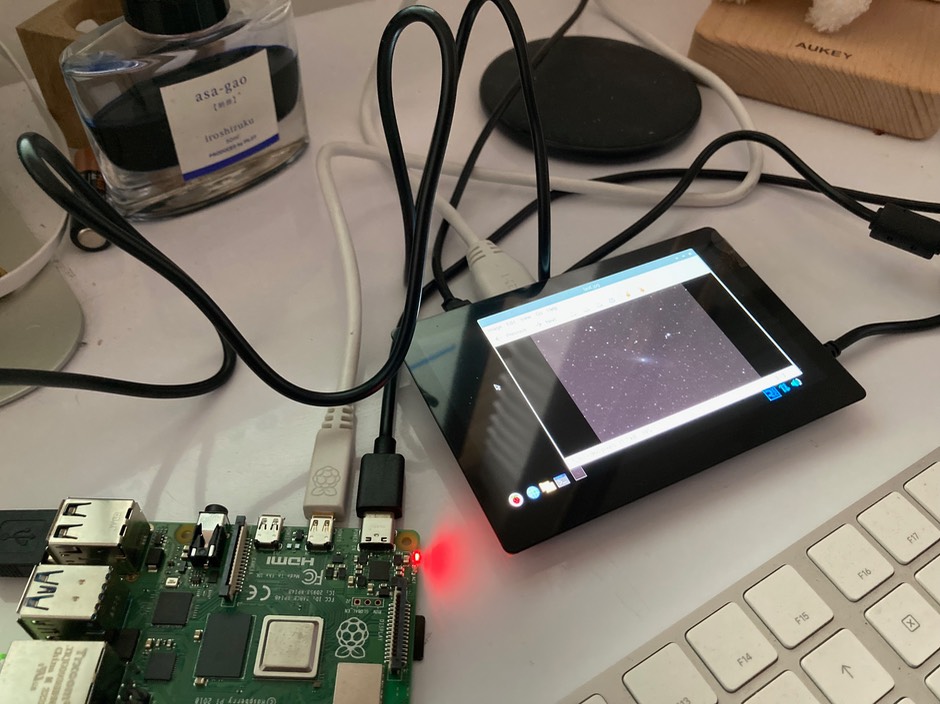

Photo to the right is the display connected to a Pi4 during evaluation.
Below is the finished new GUI running. The photo makes the star image background look brighter than it is to the eye. Next job is to put it in a box.
November at Haw Wood Farm

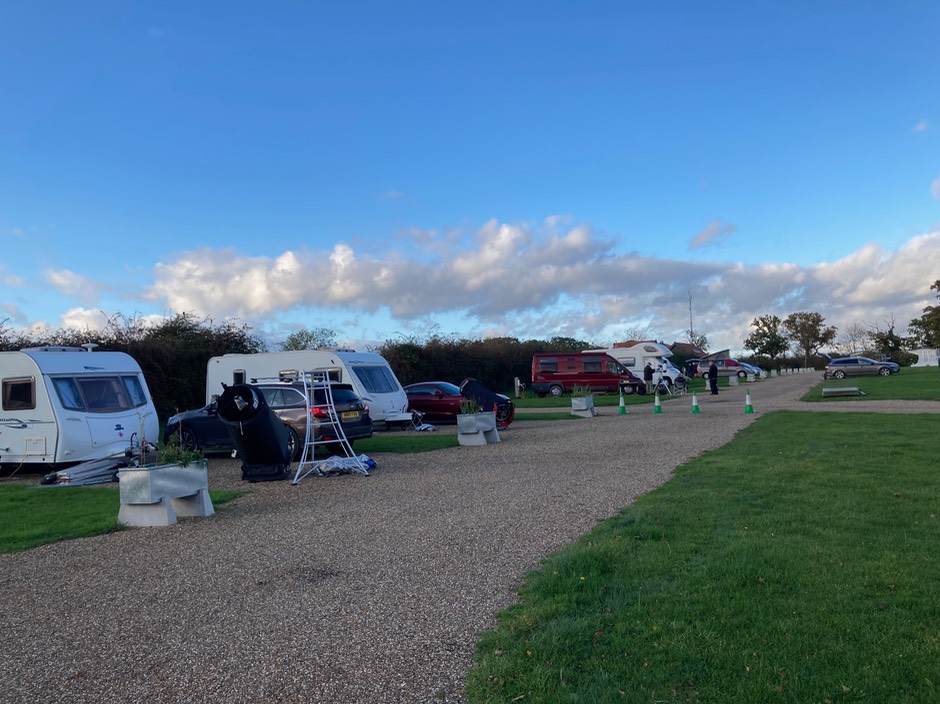

The Autumn star party at Haw Wood Farm almost had to be cancelled due to water logged ground. The forecast for the week didnt look great either. But the site managers Dan & Georgina pulled out all the stops and moved us to their gravel pitches, and asked others nearby to keep their lights down.
This worked well, and we amazingly had observing on 5 out of 7 nights, including some of the steadiest seeing I’ve seen in the UK.
My own ScopeDog drive (18” UC) with integrated eFinder worked brilliantly. A friends 15” Classic Obsession that I had installed ScopeDog with eFinder on during the summer also worked well, although the owner was still on the learning curve. A standalone eFinder I fitted to a friend’s 22” UC Obsession had its first use and on its first night bagged about 50 targets, including some very difficult to find ones.
The eFinder is now mature!
October 2023
Autumn Kelling Star Party wasn’t great weather wise. Only a couple of clear night but one was very transparent. Good to see everyone again though.
I spent most of the observing time helping some friends who have ScopeDogs and eFinders. I realise the instructions I wrote can assume too much inside knowledge!
Haw Wood Farm next month and I hope to get some ‘me' time observing!
No large changes to report on new code or hardware. Summer was busy with grandchildren and dealing with grey squirrels. The later really can be destructive pests.
About a dozen peple are currently building their own ScopeDog or eFinders, which is satisfying for me. Keeps me busy answering their questions.
Spring at last

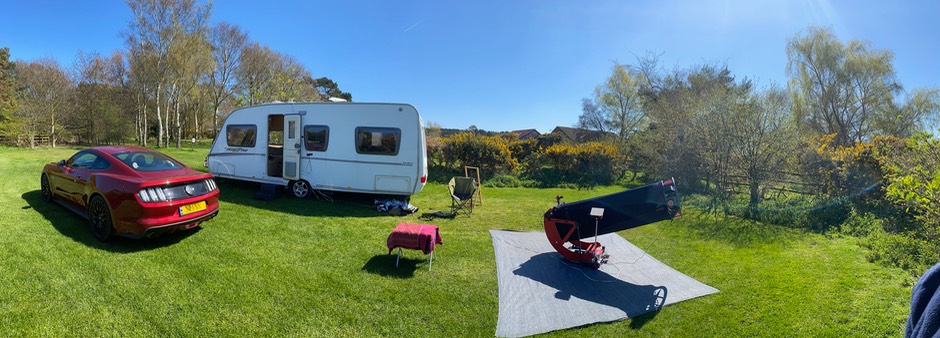

Kelling Heath astro camp wasnt too bad weather wise.
More importantly the mk3 ScopeDog continued to perform OK. I tried out some new altitude drive rollers which had Shore70 hardness urethane sleeves. These worked incredibly well.
Summer break from observing now, so time to get busy in the workshop.
More new mathematics
Since my mk2 ScopeDog I had been calculating tracking rates using classic sphercial trigonometry. Quite straightforward and the method used in professional observatories. But their scope mounts are level!
Whilst the Nexus DSC takes care of positional accuracy with a tilted mount, and the digital finder measures absolute posiion for refinements, the calculated tracking rates in Az & Alt werent taking account of any tilt. This means the scope needs to be fairly well levelled when set up. Any tilt results in tracking slowly losing the target over a period of some minutes.
With the mk4 ScopeDog (no Nexus DSC) I really needed to do my own 2 star alignment to determine tilt and improve tracking. A couple of days thinking how to do it werent very fruitful - just a headache!
Serge at Astrodevices suggested a few ideas, and a little while later I found an excellent document written by Toshimi Taki that covers it - but it was all based on matrix operations. I’d forgotten completely how to do this - so a day of revision followed. Fortunately Python has a lot of built in (NumPy) matrix operation methods.
Having coded the technique and tried it on some test data - I’m impressed and keen to incorprate it into ScopeDog mk4, and possibly mk3.
mk4 ScopeDog - no encoders!
All these versions of ScopeDog are a way of marking significant developments in the design and functionality.
A recap of versions so far.
mk1 - almost 10 years old now. Built around now obsolete Phidget modules, built in GPS, Pi3 and code written in Java.
mk2 - First appeared in 2021. New Phidget modules allowed a re-packaging into a much smaller box. Pi4 running code in Java. Closer intregration with the Nexus DSC meant no GPS needed.
mk3 - 2022. Same basic hardware as mk2 but code now in Python. Digital finder functionality built in. New hand paddle with OLED display and digital finder controls. Vastly improved pointing accuracy and ease of initial alignment.
So why a mk4?
Based on experiences with the mk3, I could see the potential to remove the need for mount encoders completely. The digital finder can quickly determine absolute telescope position and the drive stepper motors can manage position inbetween solves.
With a week confined to a caravan at a rainy astro camp, the code rewrite made good progress. Currently I can just power up the scope, point it at an object, and 3 seconds later it is tracking. No alignment needed! I can then do a goto to a new target, which is initially accomplished using stepper motor step counts, but once that is done, a plate-solve automatically corrects any errors and puts the scope on target. Adds about 4 seconds to a goto.
Only about 10% of the core code needed rewriting, but the most difficult part was establishing a direct wifi link to SkySafari (previous this had been left to the Nexus DSC)
2023 Observing so far (Spoiler -its bad!)
Attended the Spring astro camp at Haw Wood Farm in Suffolk last month. Not the worst weather, but almost!

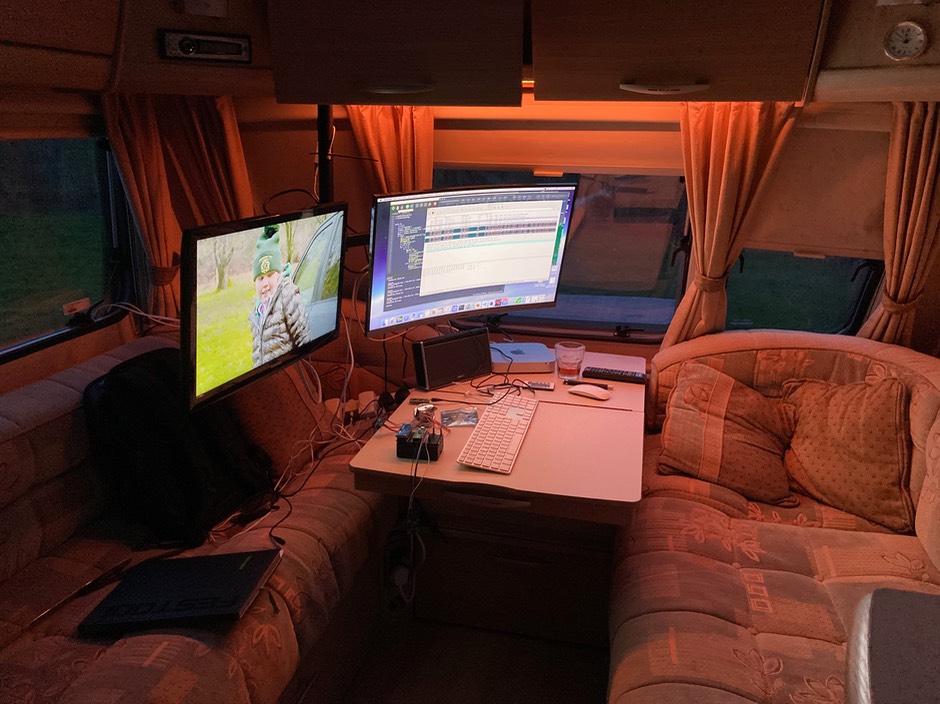

However the caravan I hire is cosy and I take most of my telescope drive development kit. With a lot of time to spare I made good progress on the mk4 ScopeDog code (more in next blog).
I made the right decision not to take the 18” Dobsonian, but instead my 100mm Miyauchi binoculars. These proved very suitable for quickly taking advantage of the few clear spells inbetween rain and wind.

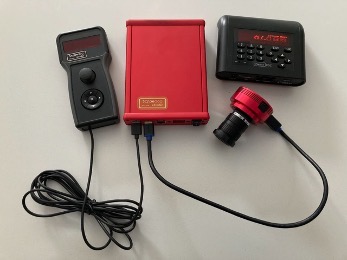

mk3 ScopeDog update
After a lot more hours on the scope simulator, I’m happy the mk3 not only works OK, but is better than previous versions. The new handbox is a real pleasure to use - adding a text display and buttons to the scope drive opens up new possibilities. The OLED display is nice and can be user dimmed down to suit.
The simplicity of just plugging a camera straight into the scope drive box is great and having integrated the scope drive and finder software lots more features can be added.
In my view, this is the future for Dobsonian drives!
I’m now experimenting with a ‘ k4' - no DSC or encoders needed. It will just use the stepper motor count and finder solves to manage scope position.
A brief diversion from astronomy

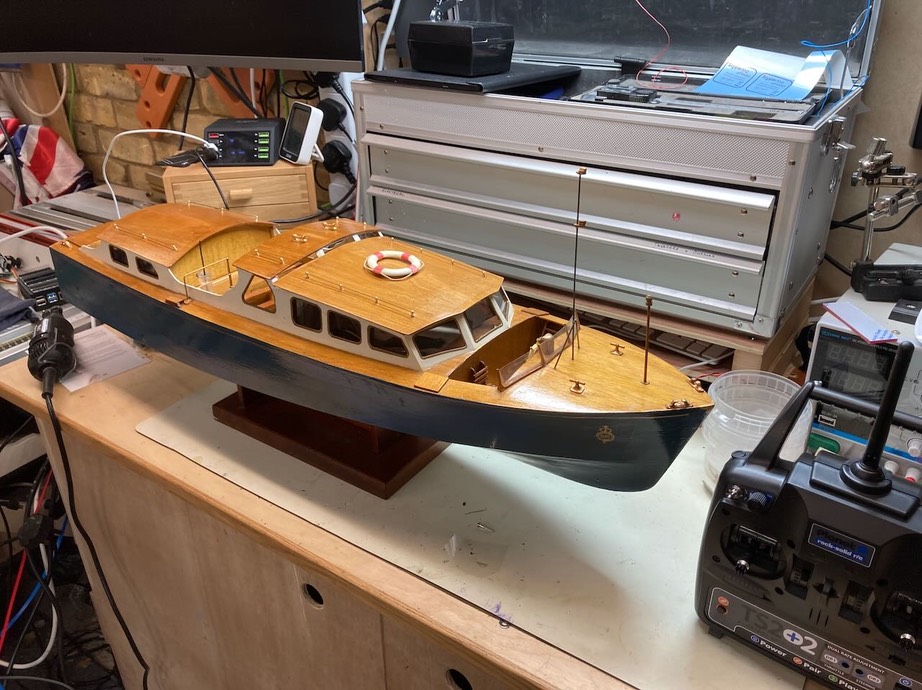

While in the attic I came across a model boat I had made with my Dad, about 55 years ago. Its the Royal Barge that was used to accompany the Royal Yacht Britannia. Some of the cabin tops were warped or missing and the electrics had long since gone.
With grandchildren, it seemed a waste to let it fester in the attic.
I therefore spent a fun couple of days remaking parts and re-purposing a radio control set I had lying around, (a long story!)
I bought a new motor and on initial testing found it to be very powerful. I think it is the right power for top speed, but controlling the boat at manoeuvering speed was very difficult. A more sophisticated speed contoller (ESC) was required and possibly even a brushless motor. Lots of money!
My blog followers will know I have been using Raspberry Pi Pico’s recently. It dawned on me that I could use one to modify the proportionality of the speed control.
The receiver outputs a pulse of variable length 1 to 2ms every 20ms. All I had to do was measure the pulse length, apply a correction, and recreate the modified pulse train to send to the ESC.

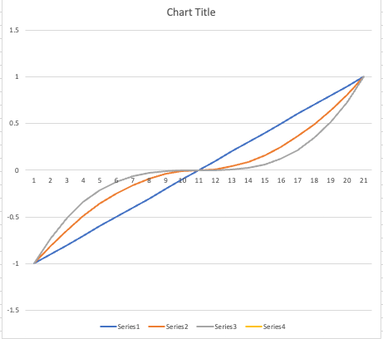

I tried a few corrections and found a simple ‘square’ law suitable. The graph shows the linear input from the receiver, plus square and cube laws. About 20 lines of micropython code were needed. The pico runs the code on power up (the receiver provides the power).
If necessary, I can use a spare receiver channel to change the law between linear and square, but early tests (in the hot tub!) suggest that wont be needed.
Job done! Pico cost £4.
All I need now is a boating pond.
