eFinder Gallery

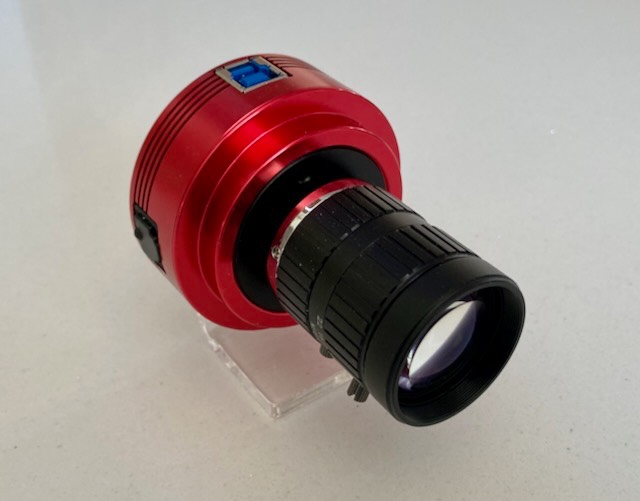

ASI120MM-S camera and 50mm cctv lens

IMG 4678

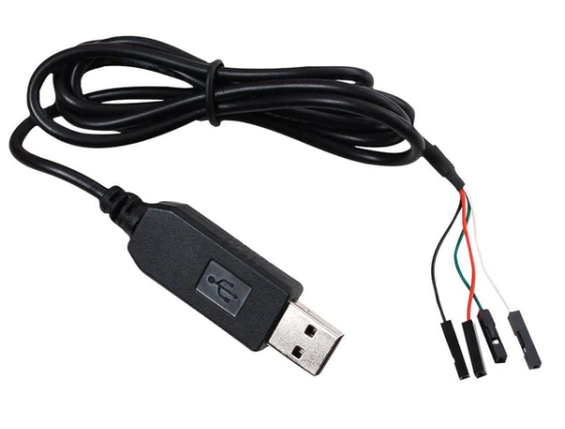

USB to TTL lead (comes ready to plug into the Pi) Makre sure it uses the PL2302 chipset

Raspberry Pi in a standard Pi case, with Nexus DSC USB lead plugged in

IMG 4970


OLED display mounted in a small plastic box. A 5 way navigation switch is used to control all functions.

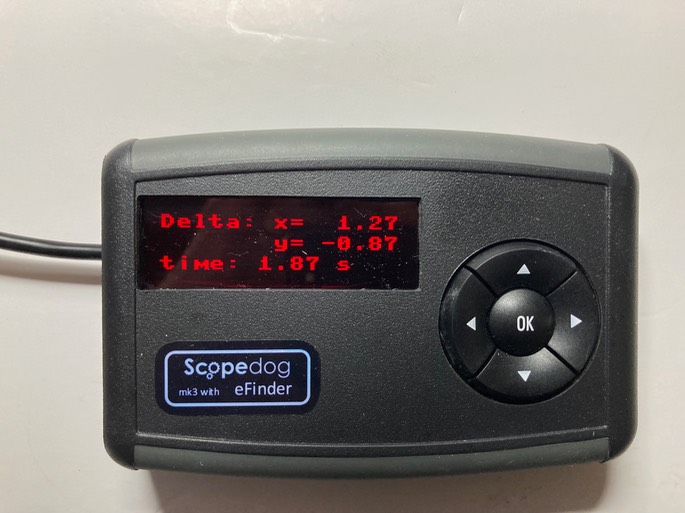

The ScopeDog style handbox style can also be used.

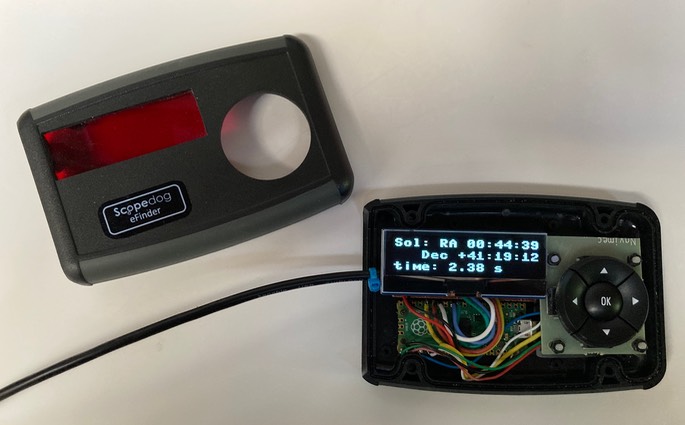

Internal view.

A screenshot of the GUI interface (accessed via VNC from a computer or tablet)

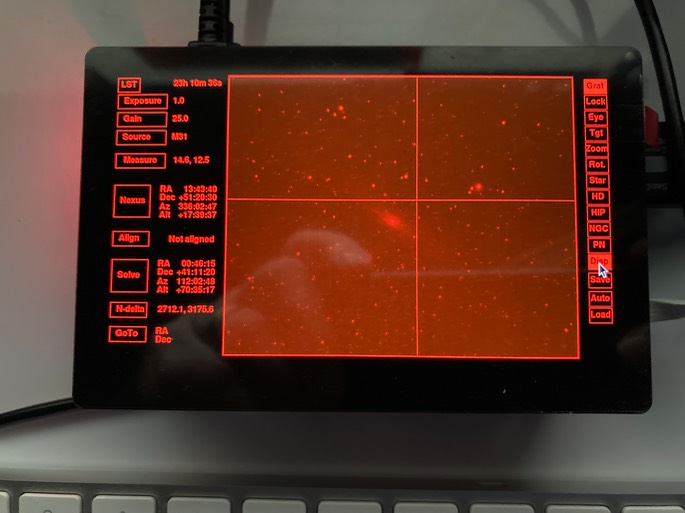

Below the new 5” AMOLED display

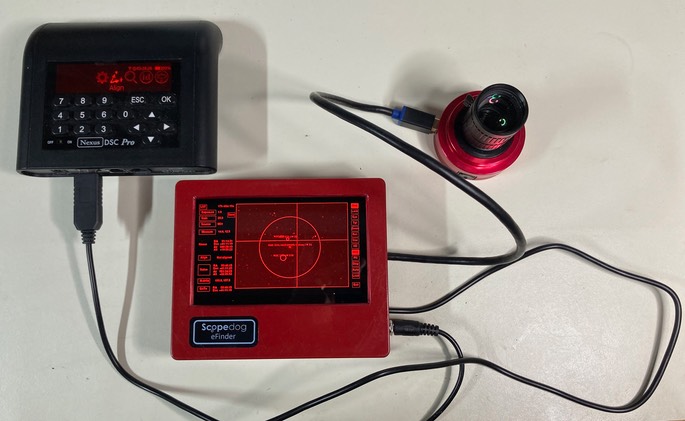

Below the new AMOLED display built into a box with the eFinder RaspberryPi. The hand box can still be used as a remotedisplay and control.
