I’ve hinted in previous blogs and articles that I thought plate-solving might replace encoders, at least in some installations. Encoders are great - they give a near instantaneous readout of position, but that position can be subject to many errors in practice.

PiFinder is a good example of a plater-solving finder scope. It works well, has its own library of objects and can feed SkySafari over wifi. It’s available as a kit and is gaining popularity with the ‘push-to’ telescope users. As I have described before, a breakthrough has been the Tetra and Cedar plate-solvers. Set up well, these can solve a 100ms exposure in around 10ms on a Raspberry Pi. The only limitation is ensuring the scope is still for the exposure. Celestron StarSense is another popular example.

Inspired by PiFinder success I decided to produce encoder-less variants of eFinder & ScopeDog. Having a Nexus DSC is still preferred, but these new variants offer a work around if your Nexus DSC is ‘having issues’, and a way of getting setup and observing ultra fast, or just not using a DSC at all.

‘eFinder Live’

My first application is eFinder Live. This is actually just an eFinder Lite with a gps module installed. If on power up if fails to find a Nexus DSC connected, it reverts to ‘Live’ mode. Here it continuously plate-solves (sensing if the scope is moving or not) and feeding SkySafari over wifi. Under typical skies it can cycle through an image capture and solve in less than a second. It could be faster but I am using a Pi Zero to keep the power consumption, size and cost down. The gps module is needed as normally I get location and datetime information from the Nexus DSC on startup. If you select a target on SkySafari, the eFinder display indicates how far to push the scope to reach the target.

Using it in practice, I initially really missed the responsiveness that encoders deliver, but after a while I got used to that and found the accuracy of pointing more than made up for it. Not having to install encoders and use a DSC is clearly an advantage for some, and a big cost saving.

‘ScopeDog Lite’

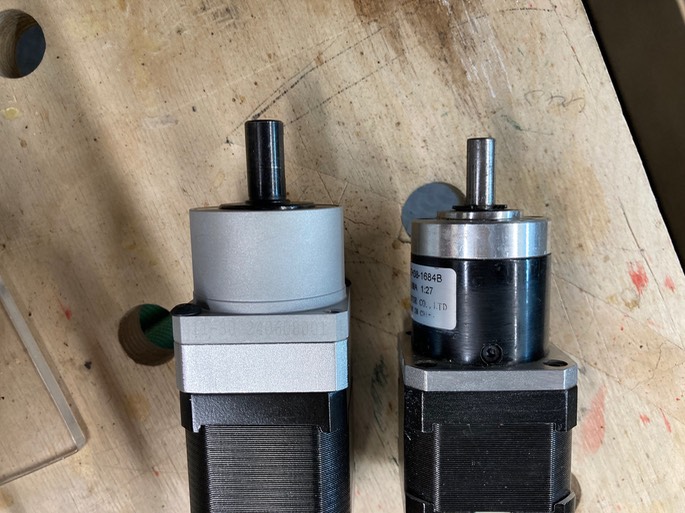

Spurred on by eFinder Live I decided to tackle ScopeDog. The principle here is to use the stepper motor drives to maintain a virtual encoder calculation of telescope position. The virtual encoders are ‘synced’ to real sky using plate-solving when needed. Like with eFinder Live, the sync is fast and is made a part of the goto sequence. Hence any conventional 2-star alignment process is not needed - instead of initially doing a 2-star alignment and trying to maintain that accuracy over a session, the alignment is done at the point of target observation. As with eFinder Live a wifi feed to SkySafari is maintained and this can be used to command goto’s and slew the scope. Comparing the various ScopeDog goto performances …

• ScopeDog GoTo: Scope slews to target position based on Nexus DSC readout. Will add any iterations necessary to get within the desired positional accuracy. These iterations are very fast, but ultimately depend on the accuracy of the Nexus DSC readout. In practice the error is often about 5-10 arc minutes.
• ScopeDog GoTo++: Scope slews to target position based on Nexus DSC readout. A plate-solve then accurately syncs the Nexus DSC to real sky and one or two more goto iterations are automatically performed. Overall this takes about 2 seconds longer than the standard ScopeDog GoTo, but the final positional accuracy is only really limited by the drive backlash. My own 18” gets to within about 15-30 arc seconds!
• ScopeDog Lite: Scope slews to target position based on virtual encoder estimate. A plate-solve then accurately syncs the virtual encoders to real sky and one or two more goto iterations are automatically performed. Time and accuracy are about the same as for ScopeDog GoTo+

Adding plate-solving into the ScopeDog drive opens new opportunities.

One that is proving very popular is a ‘Lite’ mode. Now if ScopeDog on powering fails to find a Nexus DSC connected, it will reboot into Lite mode, (direct boot to Lite is also possible). Lite mode employs three operating principles …

1. Stepper motor step counts are used to build a virtual encoder model for both axes.
2. The virtual encoder is syncronised to real sky by the plate-solver.
3. ScopeDog generates a wifi feed for Apps like SkySafari, providing a real time display of scope position, plus control via on screen move, goto and align functions.

The plate-solve syncronisation can be manually triggered from the ScopeDog sandbox, or SkySafari. It s also automatically triggered as part of a goto operation.

Physically the hardwire is the same as for standard ScopeDog, albeit without a Nexus DSC, but with a usb GPS dongle plugged into the third ScopeDog control box usb port.

At this stage, the virtual encoder model is a simple one purely based on motor steps and takes no account of any mount tilt. Hence in general the virtual encoder will not be very accurate as you move the scope away from a syncronisation point. However a ‘sync’ will quickly remove any error, and indeed produce a position fix more accurate than any conventional axis mounted encoder system. A ‘sync’ takes about a second or so.

I am starting to code a ‘learning’ feature by which ScopeDog Lite uses the plate-solves at the start of an observing session to add mount tilt and possibly cone error to the virtual encoder model. This is stretching my maths skills and may take a while! If you are interested in the maths look here.

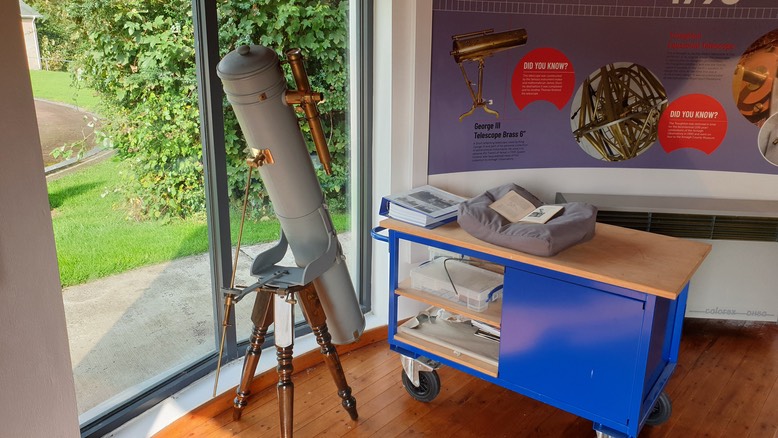

Read here for the final (?) chapter in the life of this historic telescope.

Here’s a link to the Armagh Observatory & Planetarium news release.

Astrometry.net

My digital finder journey started out using astrometry.net as the core plate-solver. I could see it was being used by many others, both amateur and commercial, and it was easy to access from my own python code. It has proved very reliable with very few failures to solve and it even works when stars are barely visible to the eye. It is quite fast if you specify the pixel scale of the image accurately, and then blind solving is about the same speed as when an RA and Dec seed is given.

Tetra3

I’ve been monitoring others’ progress using Tetra3. I was told it can give very fast results, but needs extra work in preparing the database. Also it wasn’t as reliable as astrometry.net so I had no reason to change.

But then I started developing 'eFinder Lite’. Running on a Pi Zero 2 it really struggled with astrometry.net. 10 seconds to solve wasn’t unusual (compared with <1 second on a Pi5).

So I loaded up Tetra3 on to my test rig and started feeding it test images. For about a week I barely got a solve but then it all came together. Indeed the database needs to be built customised to your camera and lens. Then for a solve Tetra3 needs again accurate information about your image.

On a Pi5 I could get down to 200ms solve time, and on a PiZero2 about 2-3 seconds. Importanly, reliability was proving to be quite good.

Cedar-detect & Cedar-solve

I noticed that PiFinder uses cedar-detect & solve extension of Tetra3. Cedar is a suite of applications that can deliver a complete camera control, star extraction and plate-solve system. It is designed for speed and continuous solving at 10Hz is even possible, (or faster!). Additionally the author has optimised the database used by the solver too.

Installation of cedar-detect & solver isnt completely straightforward, but helpful instructions for migration from Tetra3 are given. The same requirements for careful generation of a bespoke database and args when calling cedar-detect are necessary.

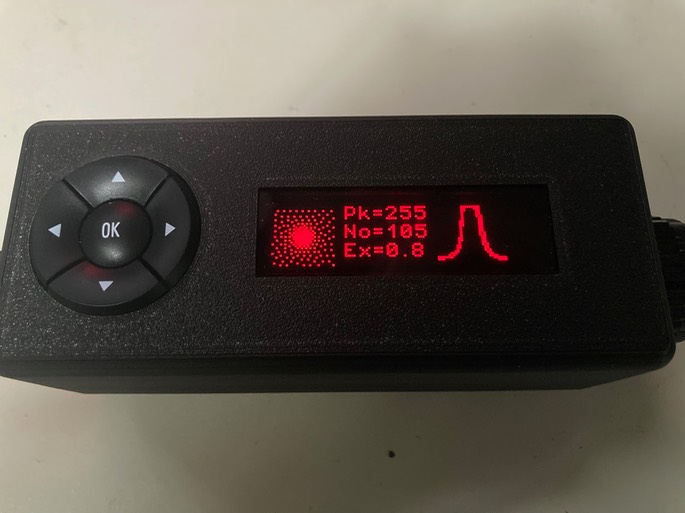

Results are impressive. With the right images, total detect and solve time of around 12ms on a Pi5 are possible and 200ms on a Pi Zero2. I say 'right images' as the star detect process whilst extremely fast, is not as robust as Tetra3 or astrometry.net. Care must be taken to prevent stars saturating, but a simple exposure control can take care of that. For my eFinder focus utility, I need to revert to Tetra3 as cedar-detect cannot register out-of-focus stars, but utility is only used once per session at most and so Tetra3 is fine. Even with UK summer night skies, I’m getting reliable results with 0.1 second exposures on my Pi HQ camera.

Conclusions

For me it is ‘horses for courses’. Astrometry.net remains the most reliable solver, easy to integrate into my code and the on-line server is a useful asset. For my systems that use a Pi5 (ScopeDog and standard eFinder) I am in no hurry to change the plate-solver. No need. The second it takes to solve an image is not excesssive when part of the overall observing process.

Where speed is important or processing power is limited, then Tetra3 wins hands down. For most of these applications, using Cedar-Detect & Solver is an obvious choice. As shown by PiFinder, this opens up the prospect of replacing encoders with a digital finder, running faster than 1Hz. But take note of the stricter image quality requirements (although I suspect the author is working on this).

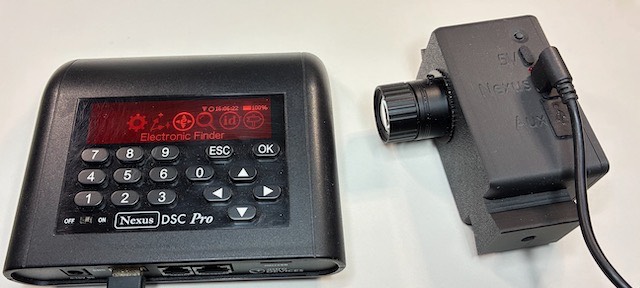

My eFinder Lite prototype is now reliably solving images in 0.2 seconds. Using the Pi Zero 2, the whole eFinder has just one cable. A USB to the Nexus DSC USB port. This provides power and data each way.

edited 31st July

Having developed and improved the eFinder, it had reached a good point to leave it as is. Quite a few people around the world have or are building their own, and it seems to be a stable design now. So what next!

I had previosuly tinkered with the Raspberry PI HQ camera (cheap and small) but left it in favour of the ASI 120 and its very good sensitivity and low noise. But others have had success (eg PiFinder) so time to have another look. Also, the Pi Zero 2 W was worth a look as an alternative to the Raspberry Pi4 or 5. It has a quad core processor, GPIO pins camera interface and can run Debian 12 which I use in eFinder. Drawbacks are slower clock speed, very low RAM size (512MB) and one only USB port.

Along with the change in camera and processor, I decided to look at Tetra3 as an alternative to astrometry.net as the plate-solver.

A fuller description of the build and how to copy it is here. But here are some ‘highlights’ …

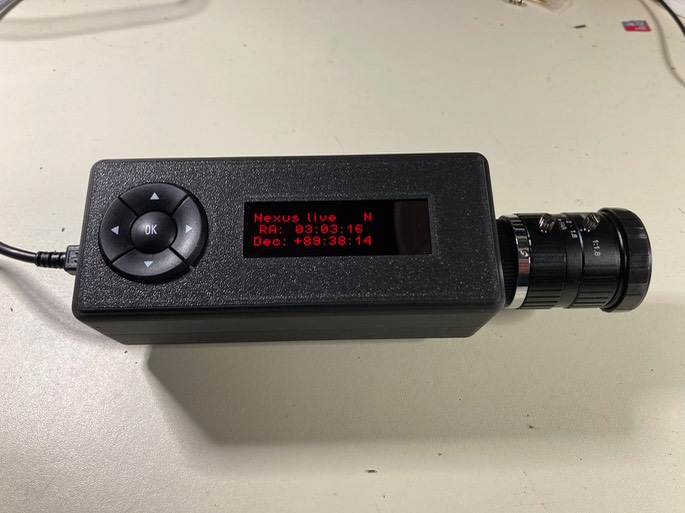

• With a faster lens (25mm f1.2) the Pi HQ camera can produce acceptable images with 1 second exposures.
• The Pi Zero 2W will run my eFinder code, after a bit of slimming down. It's slow to boot and load, but once done it is OK.
• Tetra3 is amazingly fast. It does need care in generating its search database and setting its solve parameters but once that is worked out, I can get solves in 100ms!
• The power consumption of the eFinder LIte is so low it can be powered via the USB cable connected to the Nexus DSC port.
• A really simple solution. One assembly and just a single cable to the Nexus DSC.
